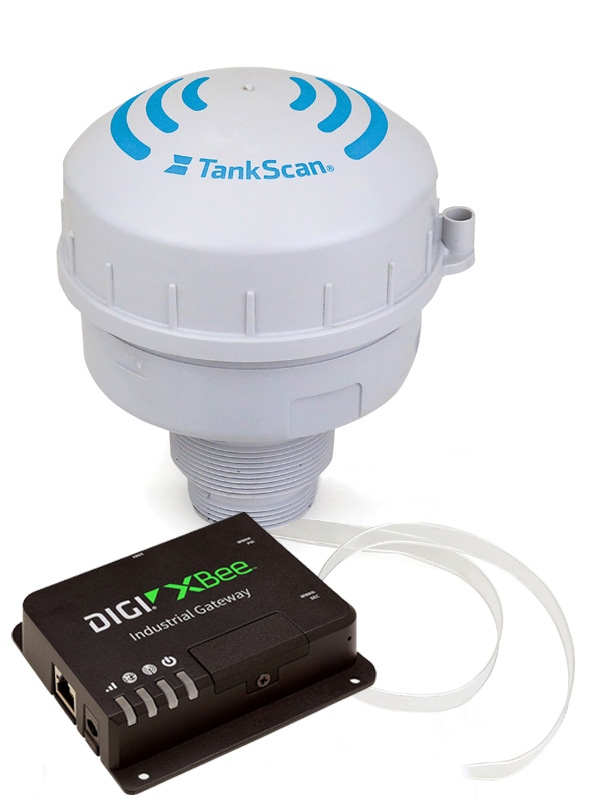

TSM Cell or Local Monitor
Using industry-leading Micro-Impulse Radar (MIR) technology, the TSM1000 Monitor Series provides tank level measurements accurate to +/- 0.3% of probe length for above ground liquid storage tanks. Its housing uses a weatherproof, non-corrosive construction making it suitable for several liquid measuring applications. With integrated 1.5“ NPT and 2” NPT external threads, the TSM1000 Series can be easily mounted on aboveground storage tanks (ASTs) without any additional hardware needed. The TSM1000 Series is intended for use with tanks from 5’ to 40’ tall. For tanks with flammable liquids, use the Intrinsically Safe TSM1000 family of monitors.
Installation & Support
| TSM1000 - SR | TSM1000 - TR | |
|---|---|---|
| Measurement Method | Micropower Impulse Radar | Micropower Impulse Radar |
| Probe Length | 60” and 96” | 144”, 240”, 300”, 360”, 420” and 480” |
| Output | Transmits ID, Level Data, Temperature, Battery Level and Internal Diagnostics Data | Transmits ID, Level Data, Temperature, Battery Level and Internal Diagnostics Data |
| Gateway Required | Yes | Yes |

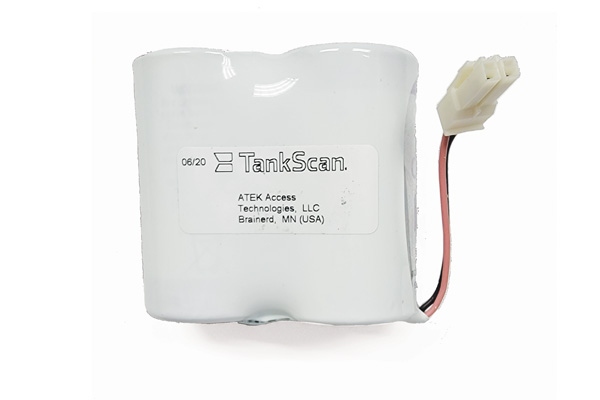

| Power Requirements | 7.2V battery pack (typical battery life of 2 years at 12-hour reporting intervals) | 7.2V battery pack (typical battery life of 2 years at 12-hour reporting intervals) |
| Remote Battery Pack | Not Available | Available |
| Construction | Weatherproof, Non-corrosive, Meets NEMA 4X | Weatherproof, Non-corrosive, Meets NEMA 4X |
| Operating Temperature | -22 ºF to +140 ºF | -22 ºF to +140 ºF |
| Approvals | FCC Part 15, Class B, Ex ia IIA T4 GaClass I, Zone 0, AEx ia IIA T4 GaClass I, Division 1, Group D, T4 | FCC Part 15, Class B, Ex ia IIA T4 GaClass I, Zone 0, AEx ia IIA T4 GaClass I, Division 1, Group D, T4 |
| Product Warranty | 1 Year, Excluding Battery | 1 Year, Excluding Battery |
| Lease Options | Available | Available |
| Custom Installation | Available | Available |
Accessories
