TankScan

Ordering and Questions

Contact Customer Care Team at 800-523-6996 for product and ordering questions.

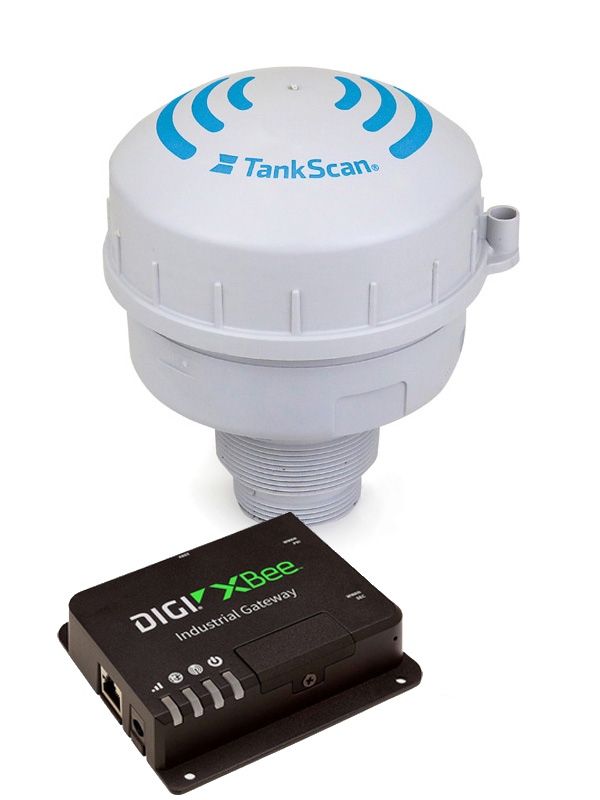

TSU1000 RF Monitor

The TankScan TSU1000 monitor is tank level solution providing remote level monitoring for groups of tanks, totes and containers. The non-contact ultrasonic level sensor is fully integrated into the battery-powered device, which can be installed on tanks where power is not available. Multiple monitors communicate via local wireless RF (radio frequency) to a local gateway. The gateway receives the monitors data and then repeats the data over ethernet, WiFi or cellular to the cloud based ATEK Intelligence Platform (AIP). ATEK supplies the gateway already setup and configured which makes installation even simpler. The monitor has a durable weather-proof enclosure and long battery life making this solution ideal for use in a broad range of tank applications.

TSU1000 RF Monitor

Installation & Support

AIP Instruction Guide TankScan
TankScan TSU Tank Monitor Setup Instructions
Short RangeMid RangeShort Range - Remote Sensor
Measurement MethodUltrasonicUltrasonicUltrasonic
Range4 Inches to 5 Feet1 Foot to 12 Feet4 Inches to 5 Feet
OutputTransmits ID, Level Data, Temperature, Battery LevelTransmits ID, Level Data, Temperature, Battery LevelTransmits ID, Level Data, Temperature, Battery Level
Gateway RequiredYesYesYes
Power Requirements7.2 V Battery Pack (typical battery life of 2 years at 12 hour reporting intervals)7.2 V Battery Pack (typical battery life of 2 years at 12 hour reporting intervals)7.2 V Battery Pack (typical battery life of 2 years at 12 hour reporting intervals)
ConstructionWeatherproof, Non-corrosive, Meets NEMA 4XWeatherproof, Non-corrosive, Meets NEMA 4XWeatherproof, Non-corrosive, Meets NEMA 4X
Operating Temperature-22˚F to +149˚F-22˚F to +149˚F-22˚F to +149˚F
Storage Temperature-40˚F to +185˚F-40˚F to +185˚F-40˚F to +185˚F
Humidity90%90%90%
Accuracy< 1.0% at 22ºC, 35% RH< 1.0% at 22ºC, 35% RH< 1.0% at 22ºC, 35% RH
ApprovalsPending Hazardous LocationPending Hazardous LocationPending Hazardous Location
EmissionsFCC Part 15B, ICFCC Part 15B, ICFCC Part 15B, IC
Product Warranty1 Year, Excluding Battery 1 Year, Excluding Battery 1 Year, Excluding Battery
Lease OptionsAvailableAvailableAvailable
Custom InstallationAvailableAvailableAvailable

Accessories

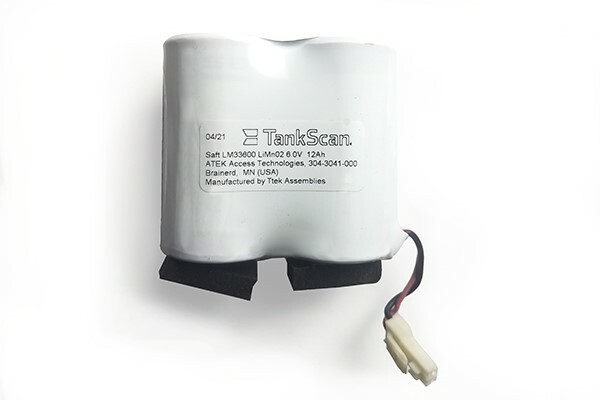

Replacement Battery Pack TSU1000

The replacement battery pack can be used in TSU1000 series monitors.

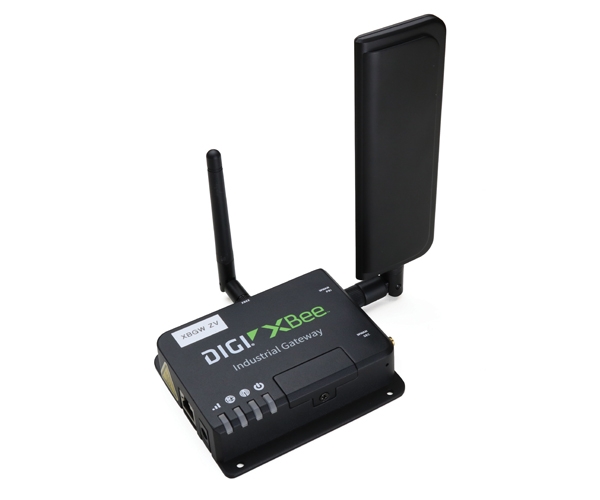

Industrial Gateway, Cellular

The Industrial Gateway provides internet connectivity via Cellular network for up to ten TSM8000 or TSM8000T series monitors. It features a metal industrial grade enclosure, has an extended temperature range and can be used in industrial settings.

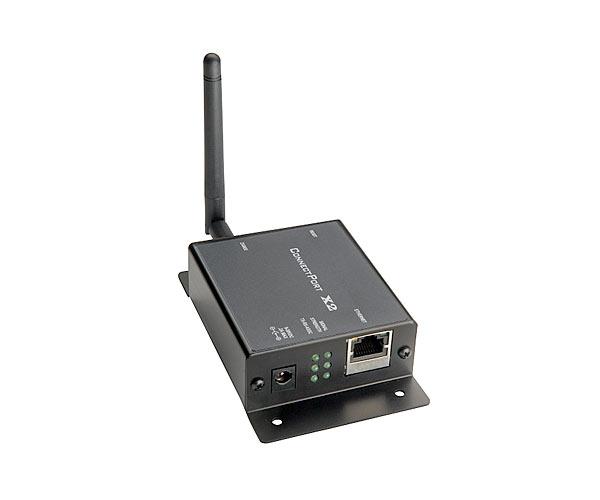

Industrial Gateway, Ethernet

The Industrial Gateway provides internet connectivity via wired Ethernet for up to ten TSM8000 or TSM8000T series monitors. It features a metal industrial grade enclosure, has an extended temperature range and can be used in industrial settings.
