TankScan

Ordering and Questions

Contact Customer Care Team at 800-523-6996 for product and ordering questions.

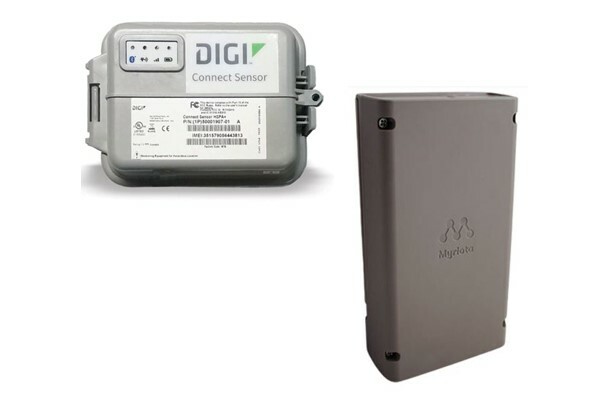

TSG Cellular Gateway

TSG series gateways provides cellular connectivity of process sensors including level, pressure, and flow featuring 4-20mA and 0-10VDC outputs. TSG gateways feature a weatherproof and non-corrosive housing making it suitable for outdoor applications and can be easily mounted at an accessible location while utilizing a signal cable to reach the sensor mounted further away. These gateways include a cellular 4G LTE radio for wireless communication to ATEK Intelligence Platform (AIP). All cellular set up and activation is taken care of thereby making installation simpler. Existing local sensors can be easily retrofitted to make their data accessible anywhere via a computer or smartphone.

TSG Cellular Gateway

Installation & Support

AIP Instruction Guide TankScan
Partner Solution: Digi Connect Sensor Plus Sell Sheet
Digi Connect Vega Sensor Setup Instructions
3rd Party Sensor Setup Instructions
Input4-20mA, 0-10VDC
OutputTransmits ID, Sensor Reading, Temperature, Battery Level
Cellular Carrier4G LTE Verizon or AT&T
Power Requirements7.2V battery pack (typical battery life of 2 years at 12 hour reporting intervals) May also be line powered
ConstructionWeatherproof, Non-corrosive, Meets NEMA 4X
Operating Temperature -31˚F to +140˚F
Approvals FCC Part 15, Class B
Product Warranty 1 Year, Excluding Battery

Accessories

Replacement Battery Pack

A replacement battery pack is available for TSG gateways

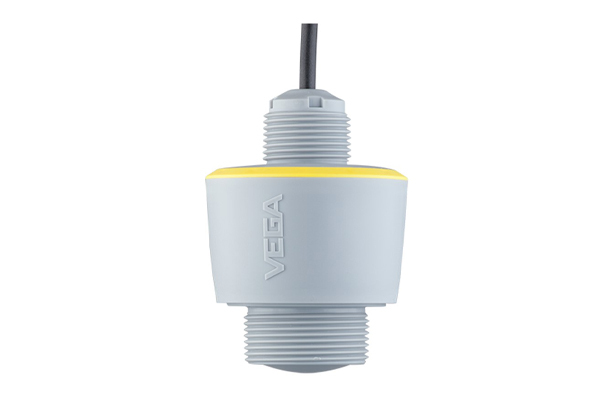

Non-Contact Radar Sensor

Non-contact radar level sensor

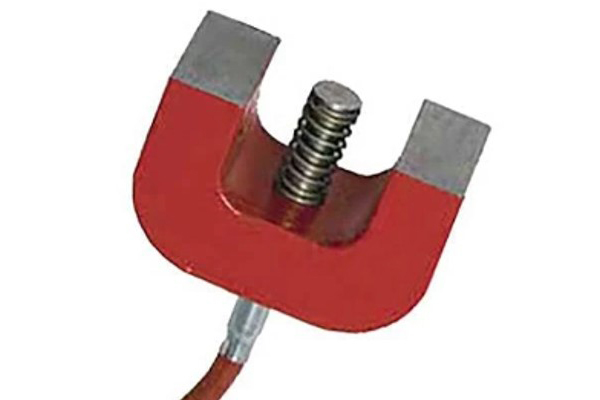

Temperature Sensor

Magnetic connected temperature sensor

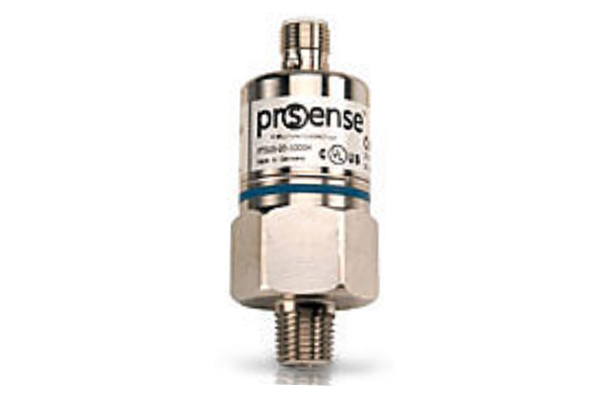

Pressure Sensor

1/4" NPT process connection

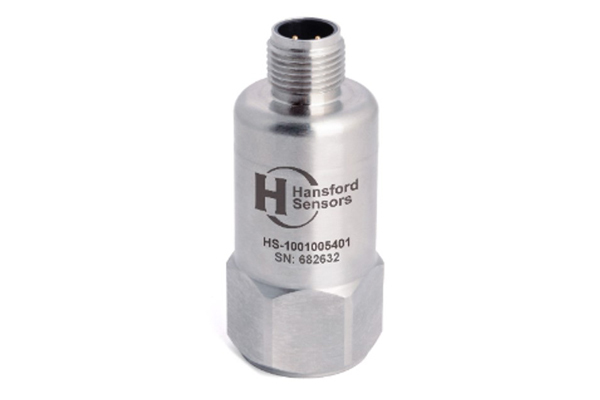

Vibration/Temperature Sensor

Magnetic connected vibration and temperature Sensor

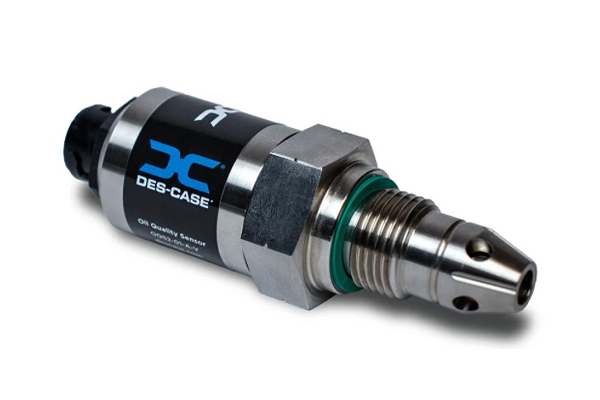

Oil Quality Sensor

High sensitivity dielectric monitor detects debris and water changes in your oil
